SKU:
BDE-020-40D
Price:
$6,495.00
CAPTCHA
This question is for testing whether you are a human visitor and to prevent automated spam submissions.
3 + 7 =
Solve this simple math problem and enter the result. E.g. for 1+3, enter 4.

In Stock (will ship in 5-6 days).

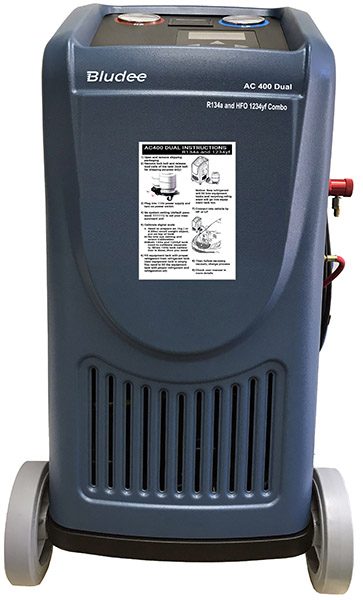

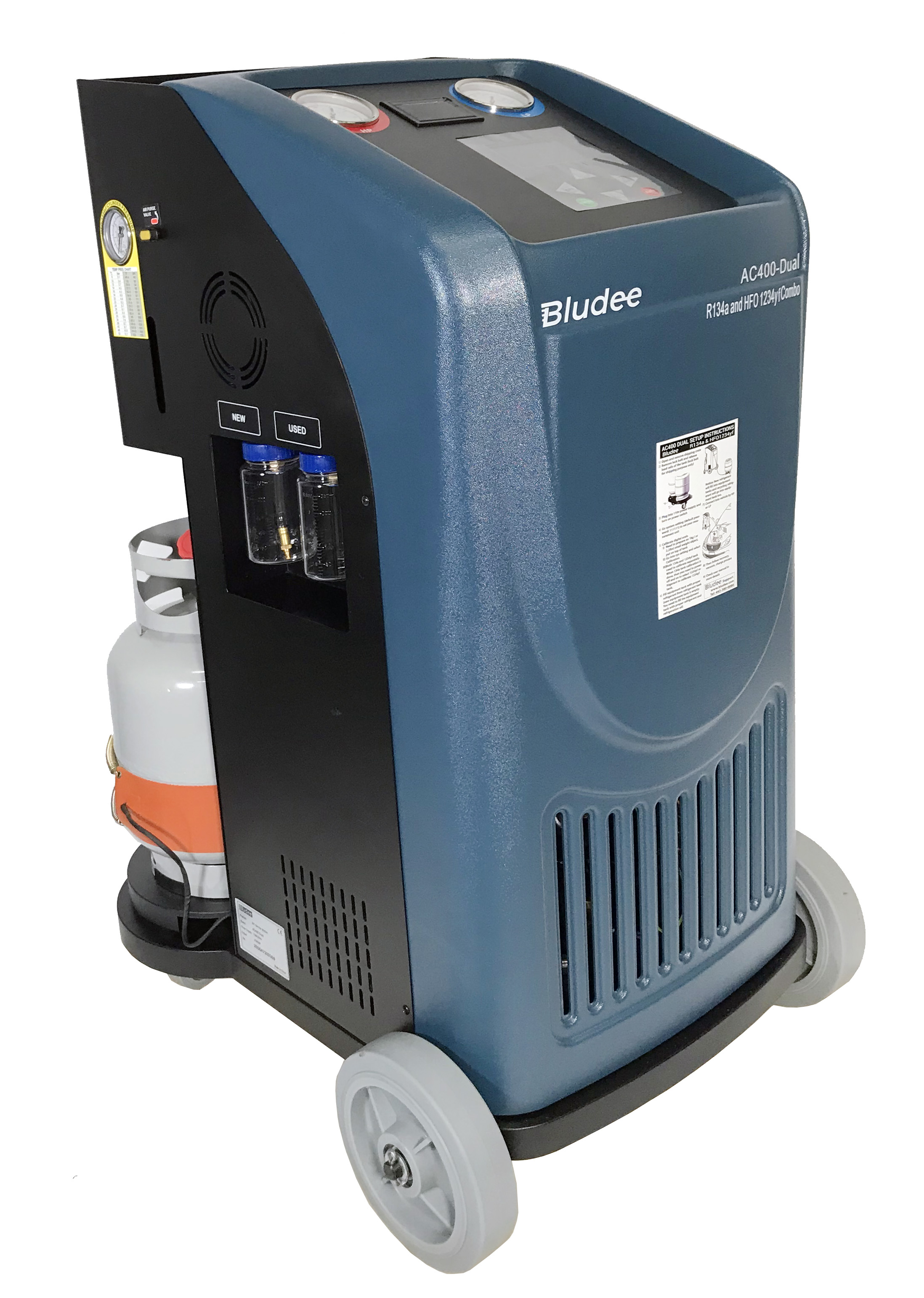

 The model AC400 dual is featuring an industry leading 99% recovery efficiency for standard and hybrid vehicles and fully automatic function.

The AC400 dual machine recover, recycle, evacuate and recharge both R-134a and HFO 1234yf with improved 99% efficiency. It has automatic refrigerant refill and oil drain/inject – putting A/C lubricant back into the system. AC400D also builtin oil capacities database for all passenger vehicles. One machine will handle two refrigerants.



  • Machine pipeline complete evacuation for refrigerant change
  • Work with R134a and HFO-1234yf Input power: AC110V 60Hz
  • Compressor:3/8HP
  • Average state refrigerant recovery speed:0.25Kg/Min Recovery rate:97%
  • Drying filter:20OZ with longer life
  • Vacuum pump capacity: 16GAL/ min
  • Load cell accuracy(gas cylinder):±10g
  • New/used oil bottle capacity:8.9/12OZ Max. working pressure:290PSI

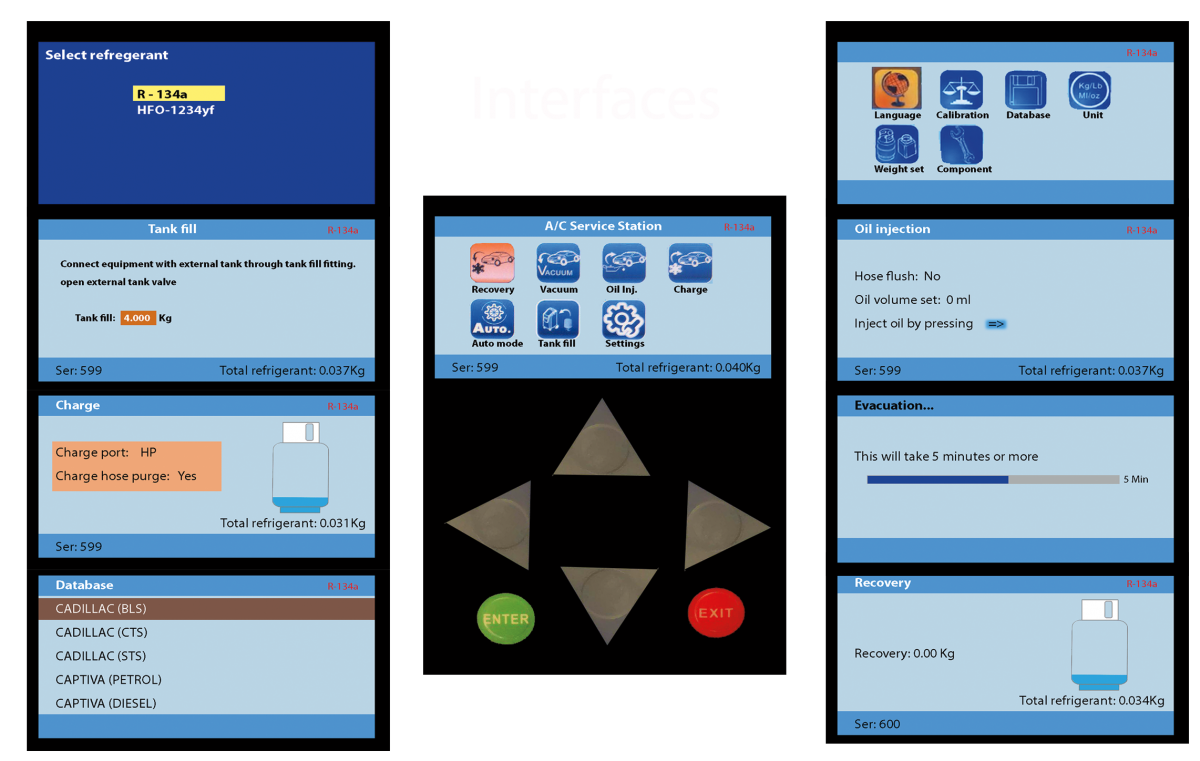

  • Color screen:4.3-inch,480RGB*272Dots Dimension: 24''*24.4''*41.2''(WxDxH)
  • Volume of dual gas cylinders:22LBS(one for R-134a,one for HFO-1234yf) Dual condensers and cooling fans (one for R-134a, one for HFO-1234yf)
  • Automatic recovery/recycling.
  • Automatic discharging used oil/oil drain.
  • Automatic vacuum
  • Automatic new oil injection
  • Automatic recharging with onboard tank
  • Automatic air purge removes the potential of air accumulating in the internal tank
  • Comprehensive A/C capacity database
  • Onboard electronic scales
  • Dual tank equipped
  • Loss of refrigerant during refrigerant change is minimized
  • Support Auto Mode: One step to do automatic recovery, recycling, vacuum and recharge
  • Tank filling with manual or pre-set value options



Software download here

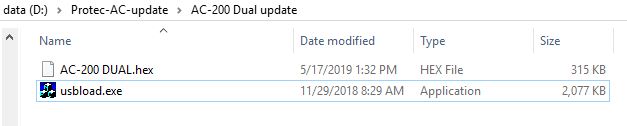

1) download file above and unzip into PC folder

2) open USBLoad.exe

3) Plug USB Cable from AC machine into your Windows PC

4) Plug AC 200 Dual machine with Power supply, turn power on and press Left and Right Arrow at the same time for 30 seconds, until the AC LCD screen showing "Update mode"

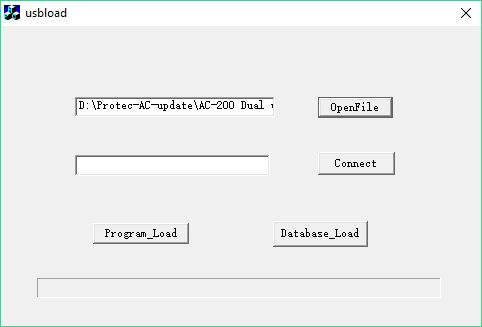

5) On your pc, update interface click on Open File and open AC-200 DUAL.hex and then click "Connect"

6) Click Program Load, the AC machine software will be updated
