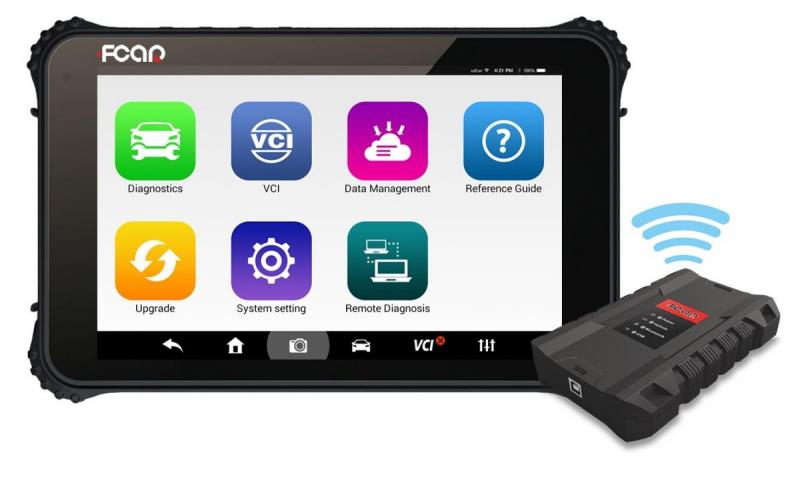

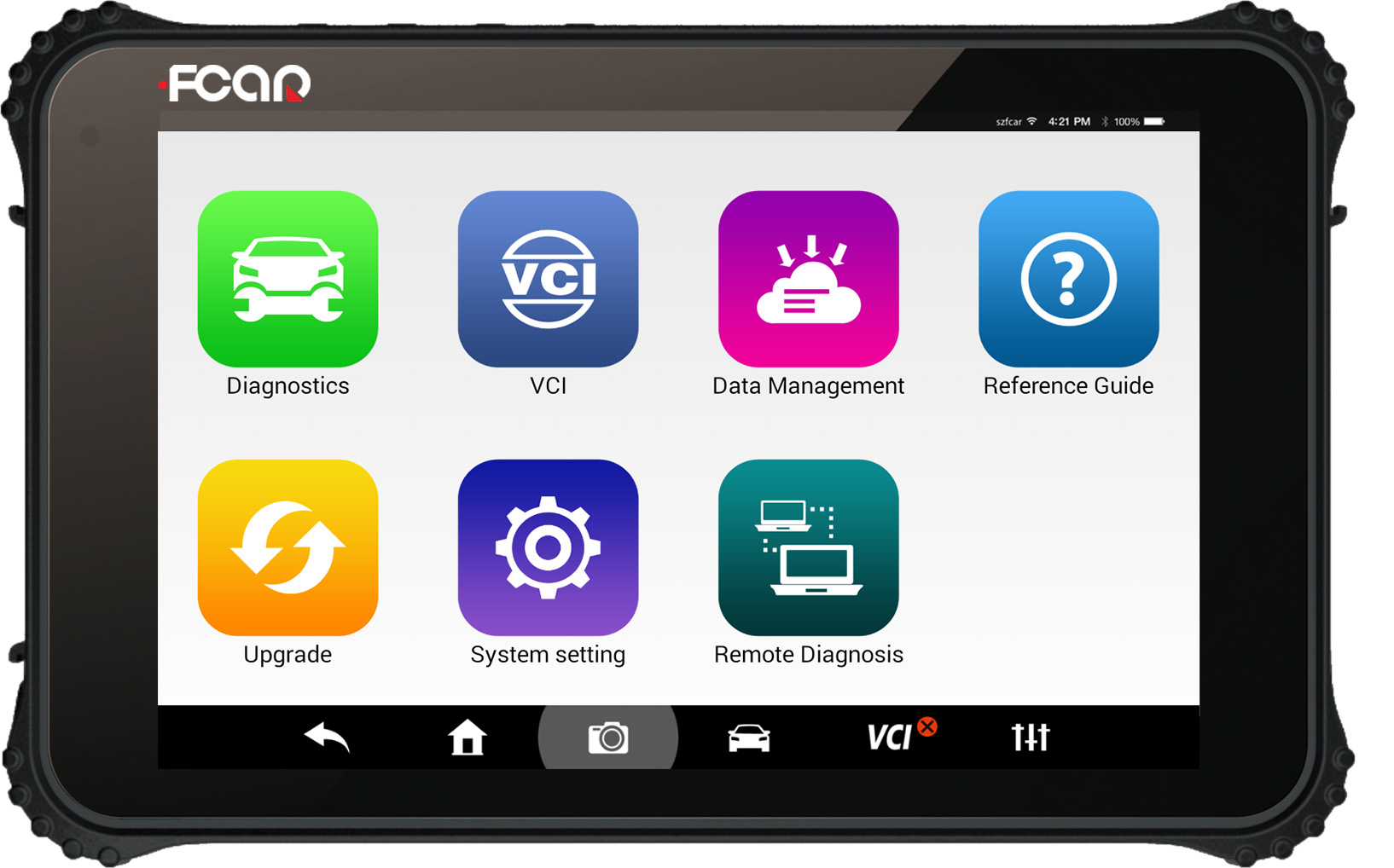

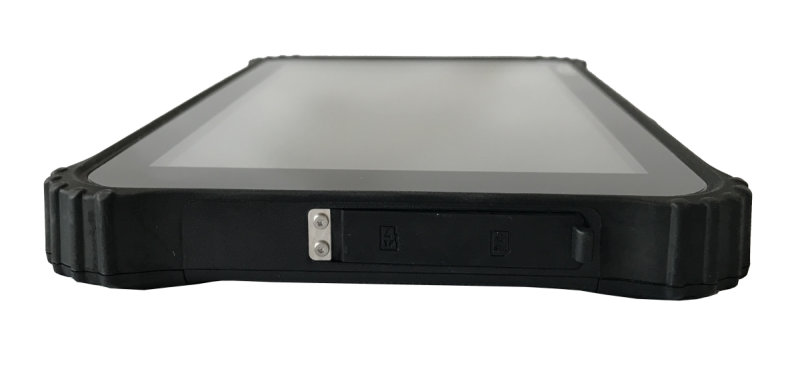

The F6 Plus Car TabPro Mini is an advanced smart automotive diagnostic platform featuring powerful, solid IP67-rated hardware in a comfortable, compact size with an 8-inch LED touch screen. It provides the best possible coverage of OE-level diagnostics and a multitask-capable Android operating system, complete with additional apps for email and internet browsing. This device enables easy and quick diagnosis of symptoms, codes, and calibration to meet your daily automotive repair needs.

Features:

  • IP67 hardware rating (waterproof)

  • Industrial quality Wi-Fi/Bluetooth

  • One-click online updates

  • Remote diagnostics and support

  • Open Android platform

  • Compatible with OBD I, EOBD, and OBDII protocols

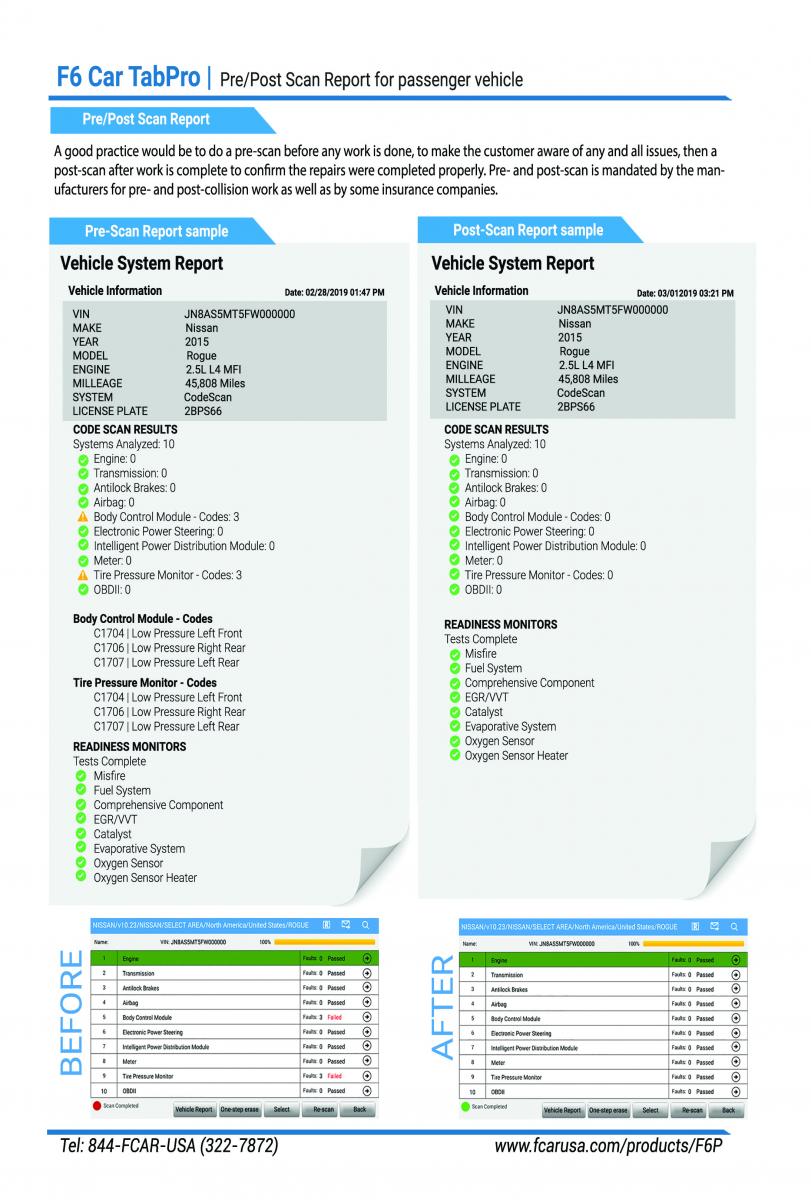

  • Pre/Post Scan reports

Form Three-proofing IP67 protection industry class
Dimension 228mm*147mm*16.5mm
Display Screen 8-inch,16:10,800*1280IPS screen
Touch Screen 5-dot capacitive screen, G+G, hardness 7H+, scratch-resistant, TP thickness: 1.1mm, COF, support hand writing
Bluetooth Support for Bluetooth 2.0&4.0
WiFi WIFI 802.11(a/b/g/n)   Frequency:2.4G+5.8G dual band WIFI
Operation System Android 4.4
CAN-BUS High/Low/Single CAN supported
Protocol CAN K-LINE/L-Line Commercial Maker

Functions:

Diagnostic functions:

  • Auto scan systems, display system information
  • Read all systems fault codes with proprietary definition
  • Show all live sensor data with graphic and record/play back feature
  • Remove all codes
  • Actuation tests
  • Bidirectional parameters reset, self-learning, adjustment and programming
  • Maintenance light reset
  • Pre/Post Scan report

Coverage:

including most domestic, Asian and European made cars, SUV, vans, pickups,light duty, medium duty commercial vehicles

  • America: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, GMC, Lincoln, Jaguar, Jeep, Pontiac, Saturn
  • Europe: Abarth, Alfa, Audi, Bentley, BMW, Fiat, Jaguar, Land Rover, Maybach, Mercedes Benz, Mini, Opel, Peugeot, Porsche, Renault, SAAB, Seat, Skoda, Smart, Sprinter, Volvo, VW
  • Asia: Acura, Daewood, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota;
  • Pickup (or Van): Silverado, Coronado, Ford (F150-750 Powerstroke and body controller), Ford E-series, Dodge RM 1500-5500, GMC, Nissan Frontier, Toyota

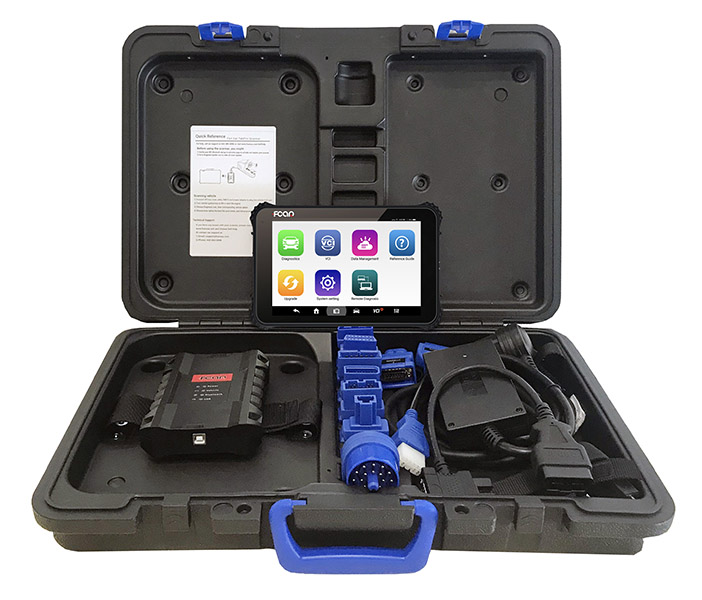

Retail package included:

  • Main tablet
  • VCI box
  • Main cable

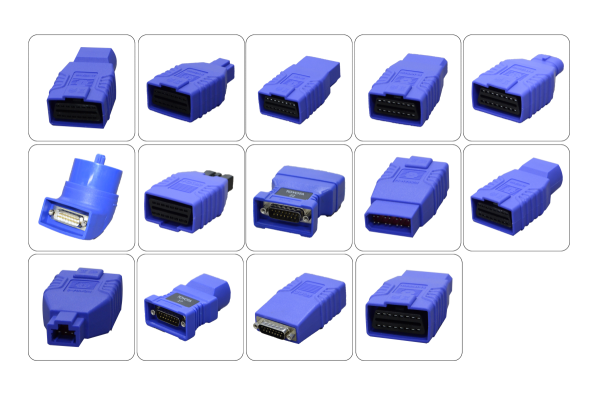

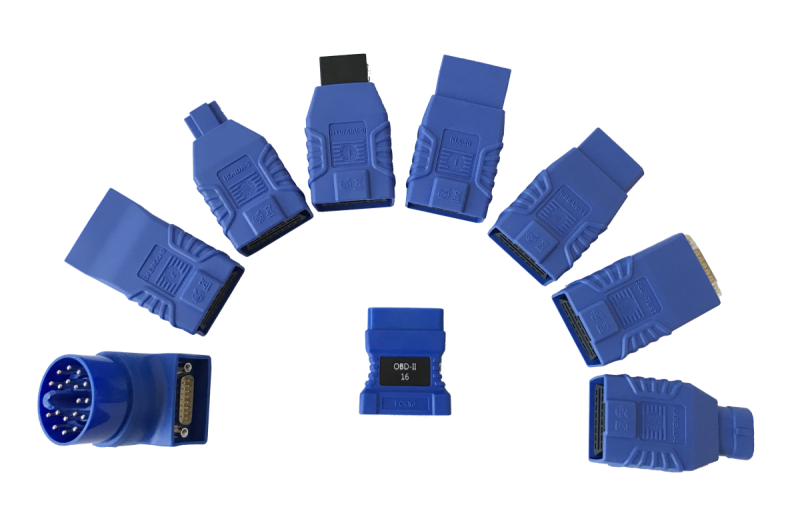

  • Adaptors
    • Self Test
    • OBD 16
    • OBD 1 or other adaptors (Mitsubishi 12+16, Benz 38, BMW 20, Nissan 14, Honda 3, Kia 20, Hyundai 10, Daewoo 12, Marelli 3)
  • Accessories:
    • AC power adaptor
    • USB cable
    • Fuse
    • Cigar lighter
    • Battery clip
  • One year hardware manufactory warrantee and two years software updates
