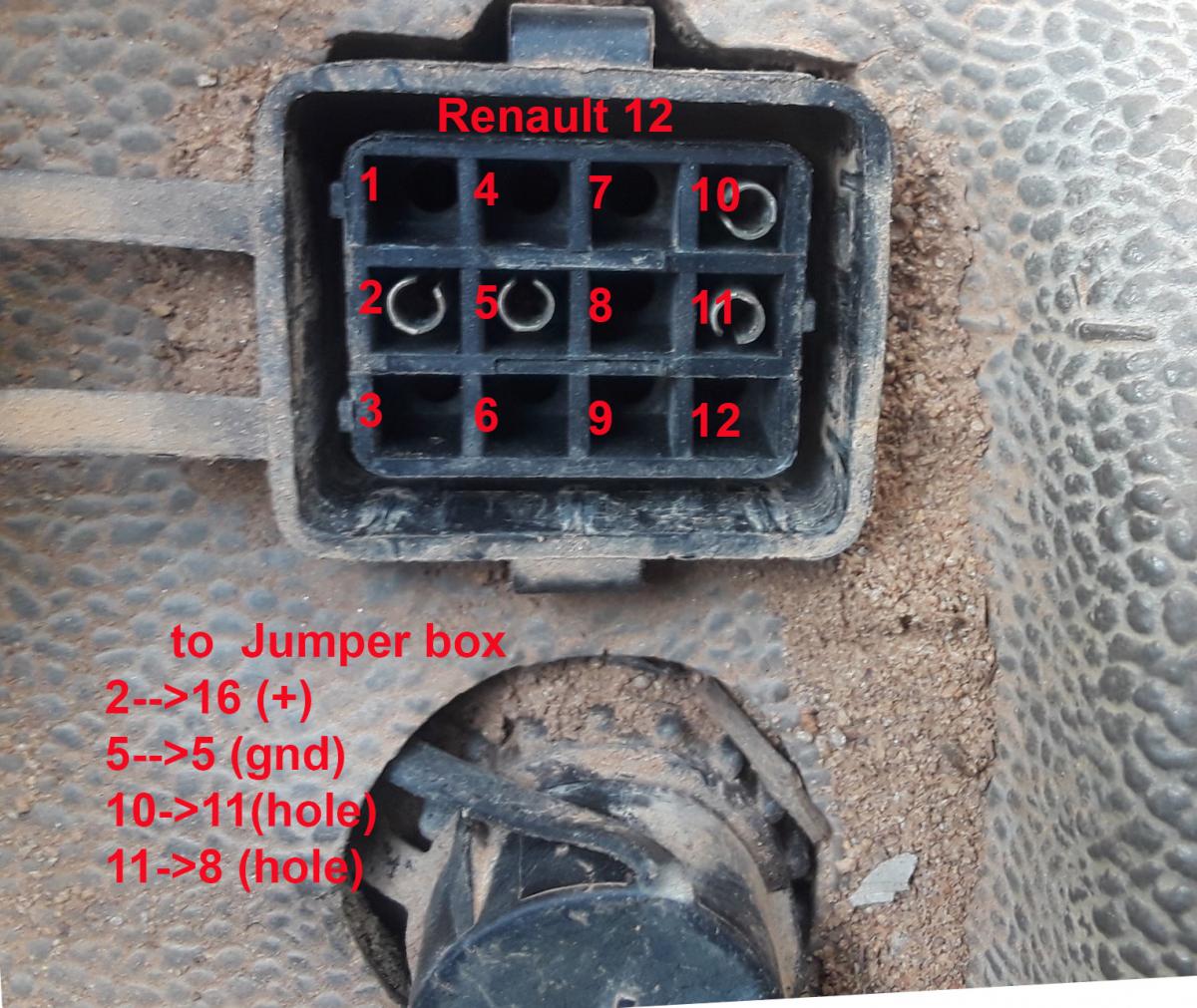

1. Renault 12-Pin Rectangular Connector

2. JumperBox pin hole mapping

Pin # Voltage Signal FCAR JumperBox hole
1     1
2     16 (+)
3     9
4     10
5     4+5 (ground)
6     15
7     7
8     12
9     13
10     11
11     8
12     3

3. Using Heavy Vehicle and Renault to scan
