SKU:
FD5-080-WPK
Price:
$14,995.00
CAPTCHA
This question is for testing whether you are a human visitor and to prevent automated spam submissions.
7 + 12 =
Solve this simple math problem and enter the result. E.g. for 1+3, enter 4.

In Stock (will ship in 10-12 days).

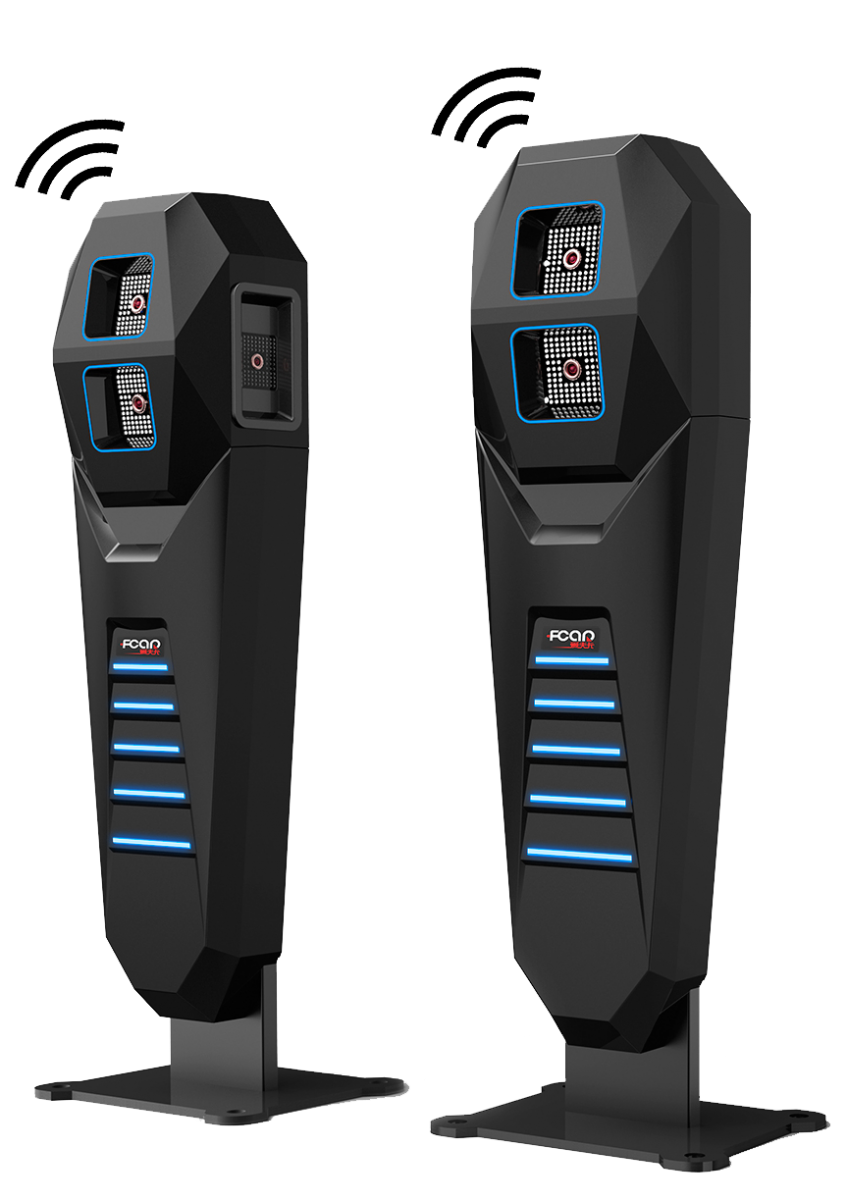

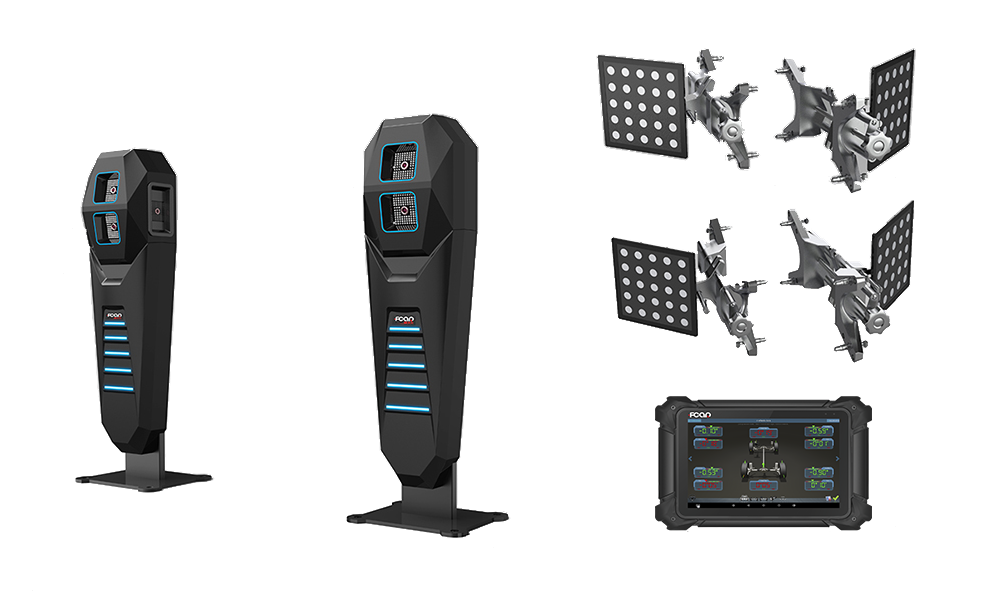

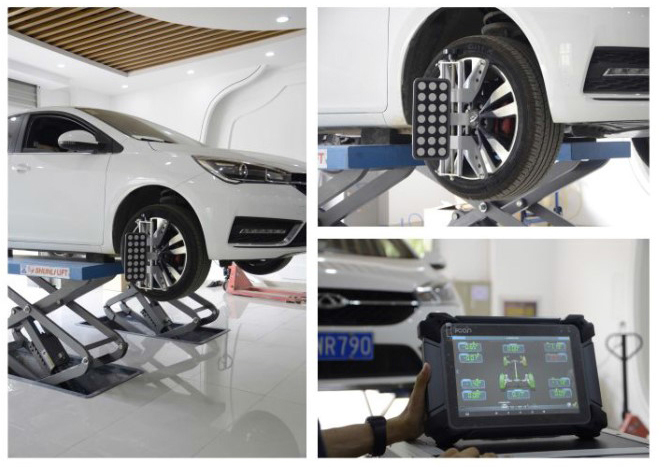

The model FD-505 wheel aligner, a professional equipment, can accurately measure the wheel alignment parameters without space limitation. It can measure front and rear toe-in, front and rear camber, caster, kingpin inclination and thrust angle accurately.

The 5D generation wheel aligner are features on portability, accuracy, easy installation and module calibration.  The aligner has built-in module calibration for suspension, electromagnetic suspension, EPS, ESP, EBA, EBD, ABS, ACC and TPMS.

Features

  • Built-in five HD cameras to scan target from difference angle
  • Automatically adjust camera to measure oversize vehicle
  • Built-in faster processor to handle image recognition and angle calculation
  • Support for multiple display on Android tablet, TV or smartphone
  • Work on your any existing lift
  • One man operation, easy and convenient

Calibration modules:

Installation:

Item Precision Range
Camber ±0.01° ±80
Caster ±0.03° ±19°
Front  wheel inclination angle ±0.02° ±19°
Toe ±0.0 ±20
Rear  wheel  thrust  angle ±0.02° ±20
Rear  wheel  axle deflection ±02° ±20
Track width  difference ±0.02° ±20
Front  setback ±0.02° ±20
Rear  setback ±0.02° ±20

No.

Type

Name

Qty

No.

Type

Name

Qty

1



Main Unit

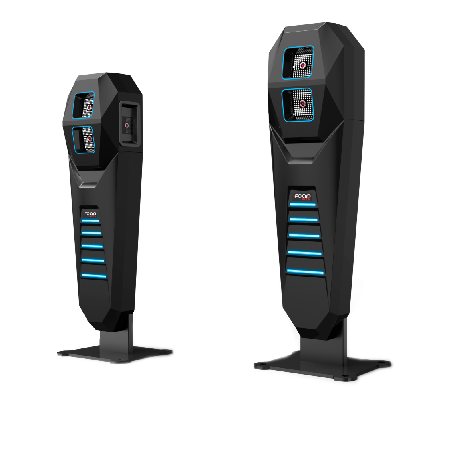

FD-505 Tower

2

11















Accessories

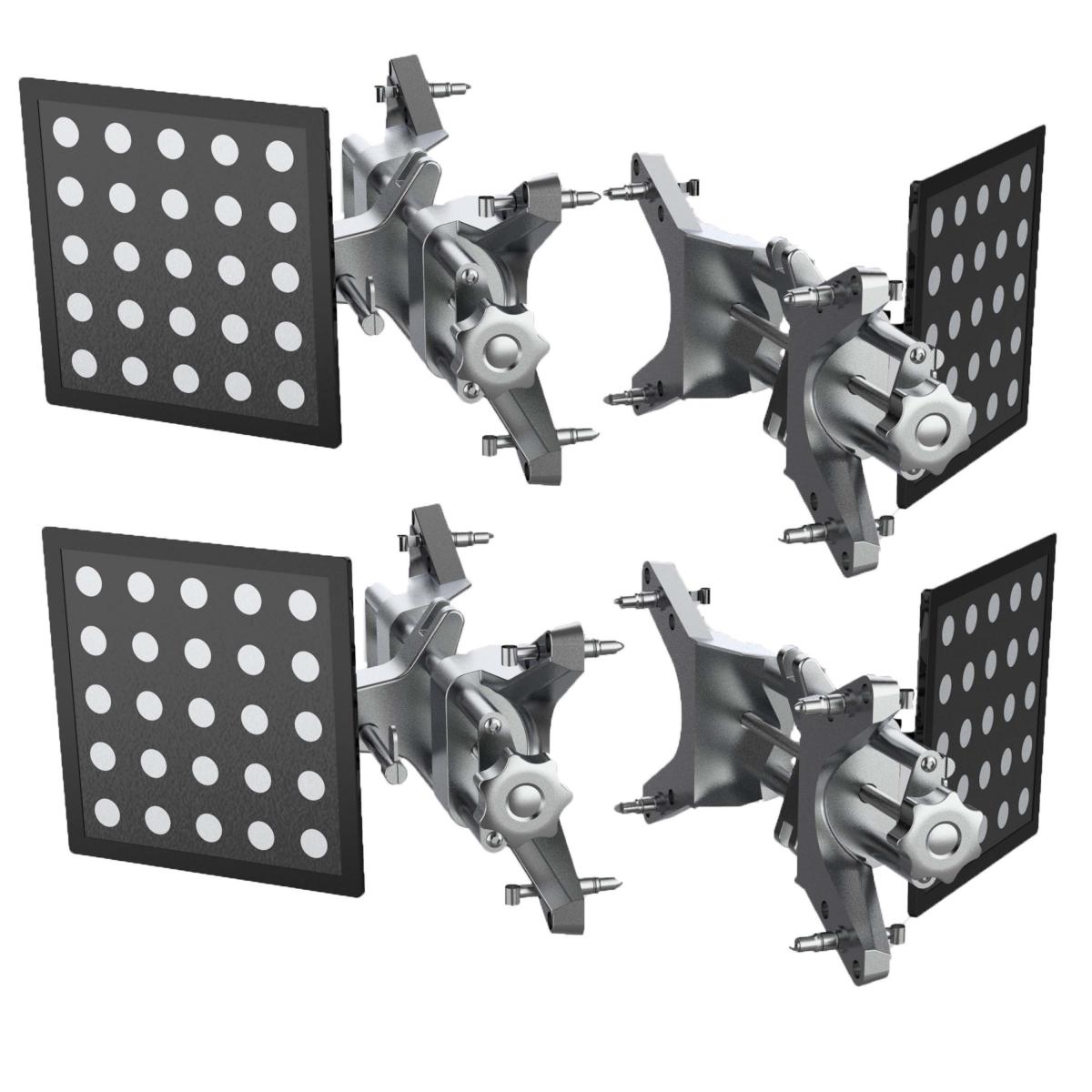

Targets A(Rectangle)

4

2

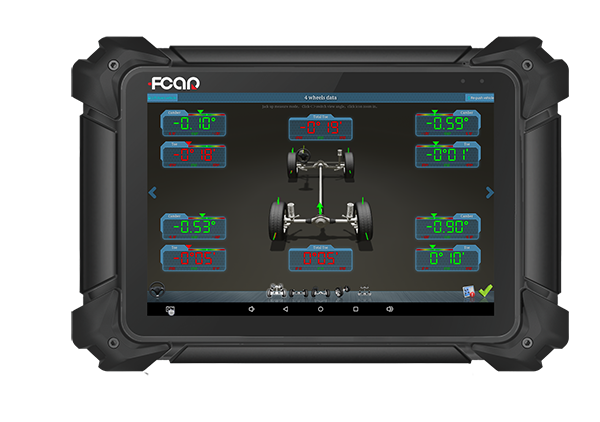

F7S-RK Tablet Computer

1

12

User’s Manual

1

3

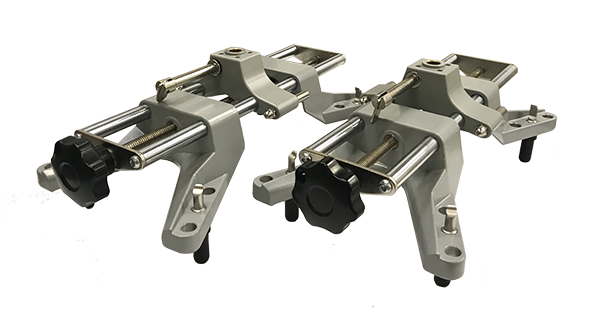

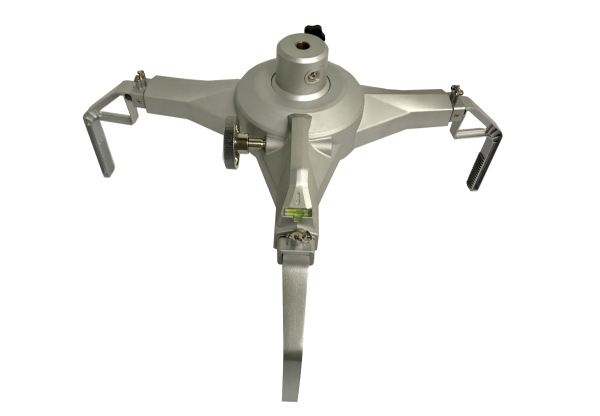

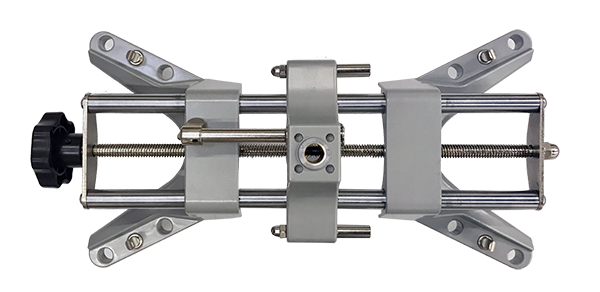

Tongs

Four Jaw Chuck

4

13

Packing list

1

4

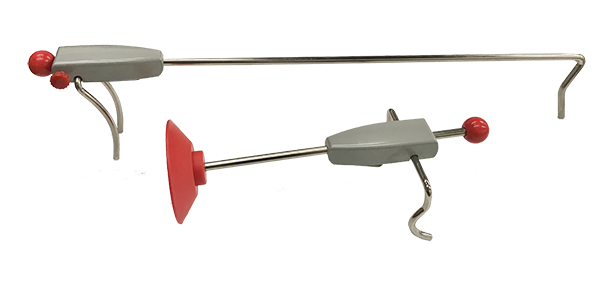

Steering Wheel Holder

1

14

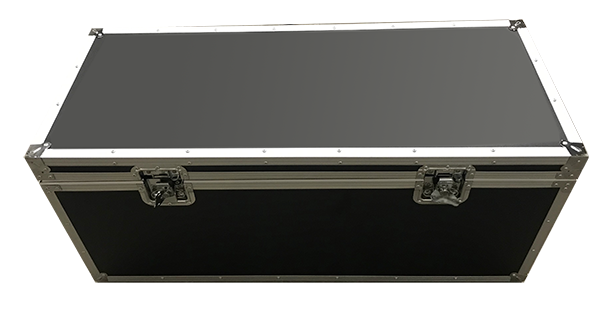

Assembly Case

2

5

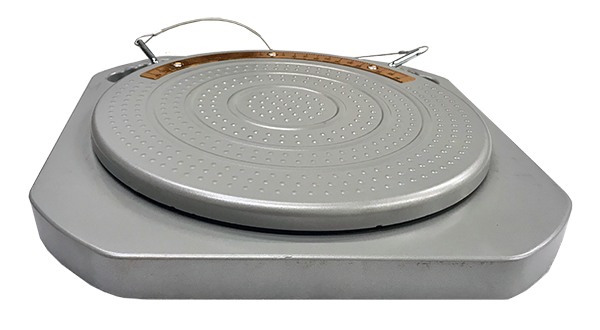

Turntable

2

15

DC Switch Power Supply

1

6

Brake Holder

1

16

Software

1

7

Transition Block

2

17

Packing box

2

8

Wedge Pads

2

18

PE Bag

8

9



Accessories

Screw

10

19

Power Cable

1

10

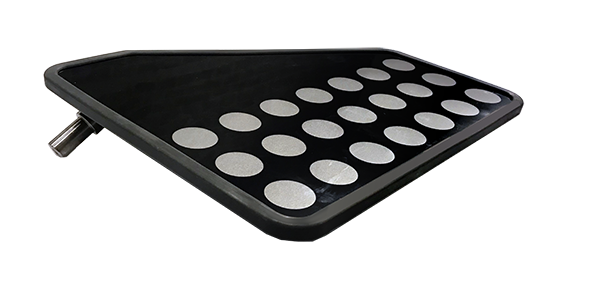

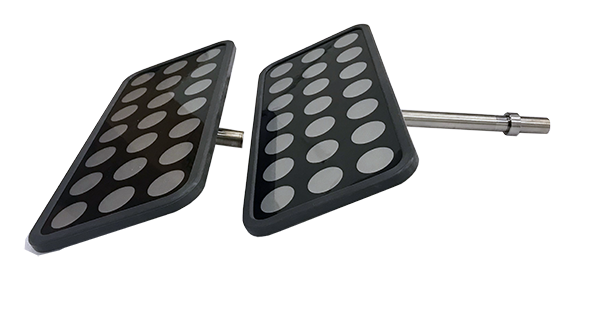

Targets B(Triangle)

4

20

Data Cable

2





Optional

Optional



Optional
